Missing image. Your app's asset catalog is missing the visionOS App Icon

Have you added a new "visionOS App Icon" item to your asset catalog? visionOS uses a different asset catalog item type than the "App Icon" used by macOS, iOS, and watchOS.

See Create an app icon for details on adding a new icon.

Hope that helps.

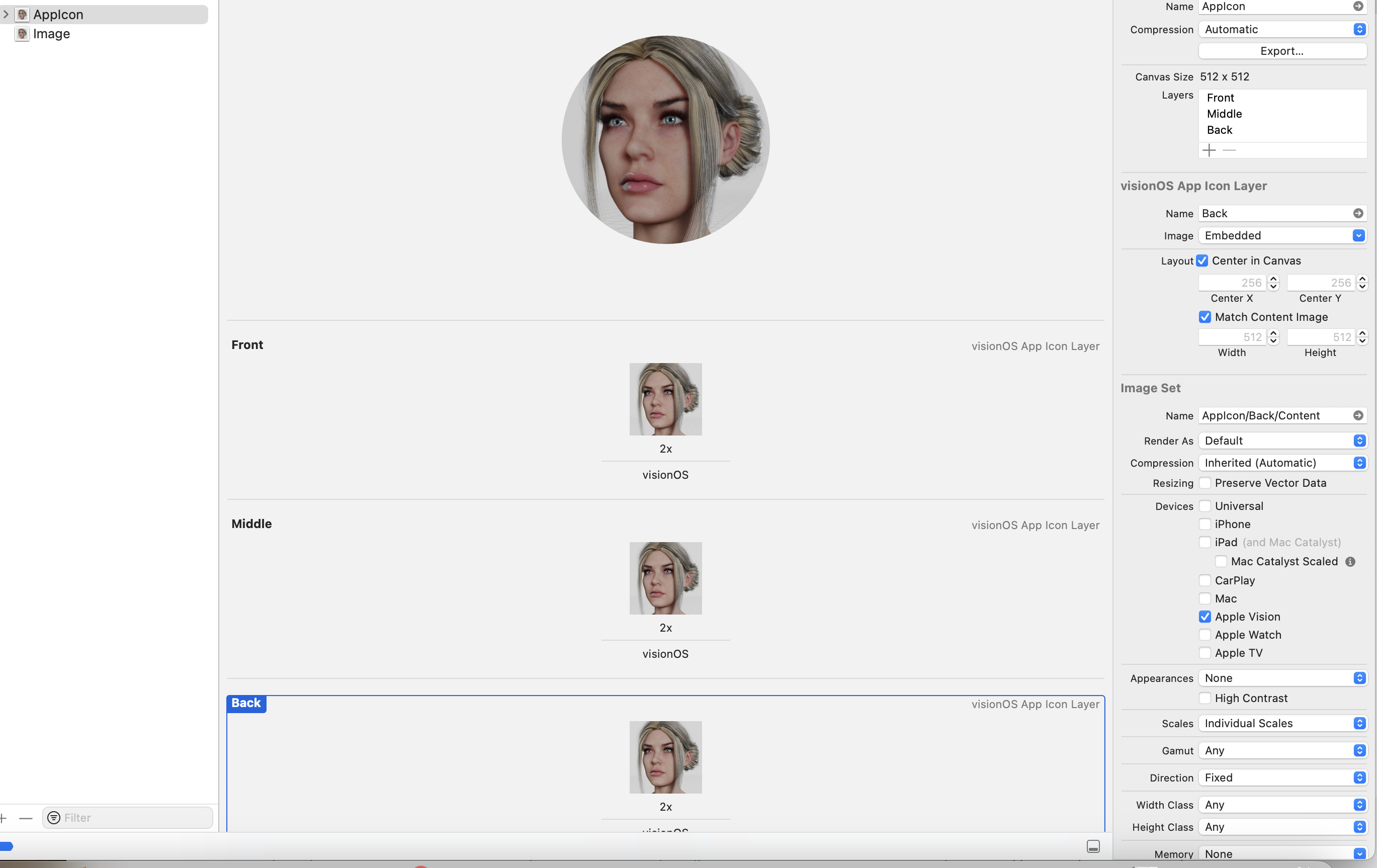

Yes, I've added a visionOS App Icon. I used three images of 1024 by 1024 to create the icon. It's in my asset catalog. I read through "create an app icon."

Does the built app's Info.plist reference the correct name? It should contain the following:

  <key>CFBundleIcons</key>
	<dict>
		<key>CFBundlePrimaryIcon</key>
		<string>AppIcon</string>
	</dict>

Does the Assets.car in your built app contain references to the icon? You can list the contents with the following command:

xcrun --sdk xros assetutil --info <path to app>/Assets.car

The JSON output should have an entry with "Name" : "AppIcon" and a list of "Layers" containing data for each image.

If the Info.plist or Assets.car don't look correct, that would help identify next steps. If they both reference AppIcon (and especially if the icon is displayed on Vision Pro), please file a bug report with Feedback Assistant

After spending two days on trying to solve this problem I eventually did by just rebuilding the whole app from scratch. I'm sure somewhere in the code the directories were wrong but I couldn't find it.

Let me save someone hours of time and build errors.

1. Go to the AppIcon in your assets and make sure they are linked to your target app.

2. Next make sure your you edit your Plist source to include the exact CFBundle it says you are missing. In my case I need to add this with the "." exactly as the error displayed. I put the final version of my code plist for example just in case it's helpful.

Fix:

<key>CFBundleIcons.CFBundlePrimaryIcon</key> <string>AppIcon</string> <key>CFBundleIconsForVisionOS</key> <dict>

Final Code:

<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>CFBundleIcons</key> <dict> <key>CFBundlePrimaryIcon</key> <string>AppIcon</string> </dict> <key>CFBundleIcons.CFBundlePrimaryIcon</key> <string>AppIcon</string> <key>CFBundleIconsForVisionOS</key> <dict> <key>CFBundlePrimaryIcon</key> <string>AppIcon</string> </dict> <key>CFBundleIconsForVisionOS.CFBundlePrimaryIcon</key> <string>AppIcon</string> <key>CFBundleIconName</key> <string>AppIcon</string> </dict> </plist>
