The occulution relationship of virtual content and real object

We can use OcclusionMaterial to solve issues like this. Essentially, we can use ARKit features to get meshes that describe the real world environment, the assign OcclusionMaterial to them.

Apple has a neat example app you can try and a short tutorial that describes the process.

Obscuring virtual items in a scene behind real-world items

Bonus: You can also create your own material using ShaderGraph in Reality Composer Pro. There are two nodes that we can use.

• Occlusion surface
• Shadow receiving occlusion surface - use this one if your app needs to cast shadows or shine virtual lights on the environment.

Hi @radicalappdev and thanks for this informations.

I also tried to get the best integration of my 3D model into the real world. The SceneReconstructionProvider works very well with an OcclusionMaterial(), but using this method I was losing the GroundingShadow().

So I looked into the Shadow Receiving Occlusion Surface (RealityKit). It doesn’t work with the default GroundingShadow, but it seems to work with a DirectionalLightComponent. However, I wasn’t able to achieve a nice rendering — I keep getting a kind of white haze over my shader, which looks bad.

1 ) the first difficulty is , it's difficult to setup a correct light because "proxy:true" is not valid in visionOS

let lightEntity = Entity()
              let directionalLight = DirectionalLightComponent(
                  color: .white,
                  intensity: 1000
                  // NO PROXY OPTION IN VISION-OS
              )


             let shadows = DirectionalLightComponent.Shadow(
                  maximumDistance: 10,
                  depthBias: 0.01
              )
              lightEntity.components[DirectionalLightComponent.self] = directionalLight

              lightEntity.components.set( DynamicLightShadowComponent(castsShadow: true))
              lightEntity.transform.rotation = simd_quatf(angle: -.pi/4, axis: [1, 0, 0])
              content.add(lightEntity)

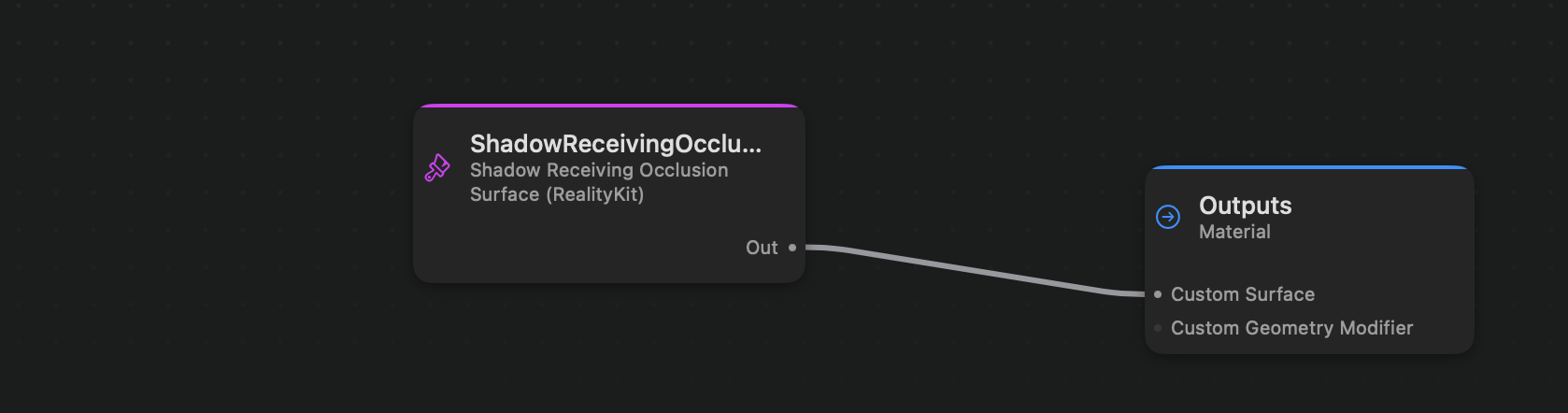

I made a basic shader to test :

** And the problem is that the Z-DEPTH of the OcclusionMaterial() blocks the GroundingShadow, even when plane detection is enabled in ARKit. So it’s a bit frustrating — it’s either my 3D models with a GroundingShadow or with occlusion, but not both at the same time.**

    let objectWillChange = ObservableObjectPublisher()

    let session = ARKitSession()
    let worldTracking = WorldTrackingProvider()
    let scene   = SceneReconstructionProvider(modes: [.classification])   // fournit les MeshAnchor
    let planeDetection = PlaneDetectionProvider(alignments: [.horizontal])

    func start() async throws {

        if(BuildEnv.isPreview || BuildEnv.isSimulator) {
            return
        }

        try await session.run([planeDetection,worldTracking,scene])
        print("ARPipeline started")
    }

    func stop() async {
        session.stop()
    }
}
