This may seem really basic, but I'm not using the screen designer, I'm doing this old school (programmatically).

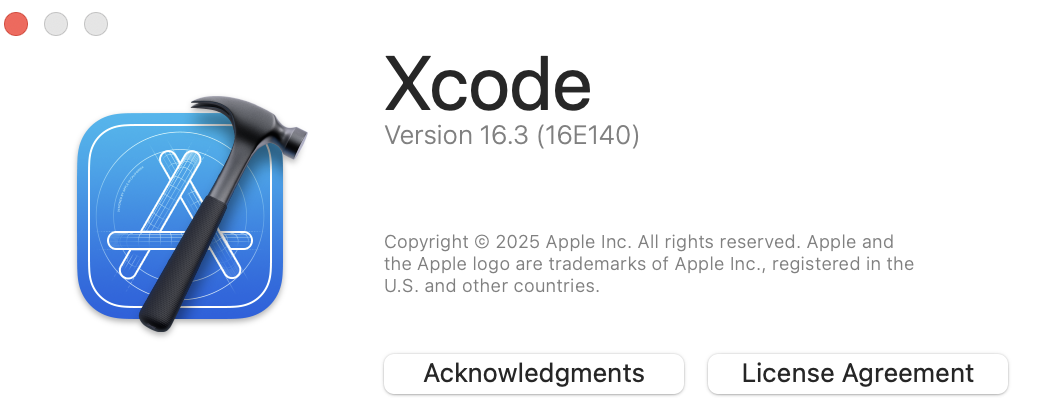

I think I'm using Swift 5 (not actually sure). This image may help.
So I created my own UIImageView class called GenericImage
class GenericImage: UIImageView, @unchecked Sendable { ... }
I create the GenericImage class and add it to the View Controller. Then I load the image and set some positioning within my GenericImage class
let imageView = GenericImage(frame: CGRect.zero)
self.view.addSubview(imageView)
imageView.processResponse(componentDictionary )
In the GenericImage class I load the image and set some constraints.
self.imageFromURL(urlString: imageUrl)
self.translatesAutoresizingMaskIntoConstraints = false
self.contentMode = .scaleAspectFit
self.widthAnchor.constraint(equalToConstant: 100.0).isActive = true
self.heightAnchor.constraint(equalToConstant: 100.0).isActive = true
self.centerXAnchor.constraint(equalTo: self.centerXAnchor).isActive = true
self.topAnchor.constraint(equalTo: self.centerYAnchor).isActive = true

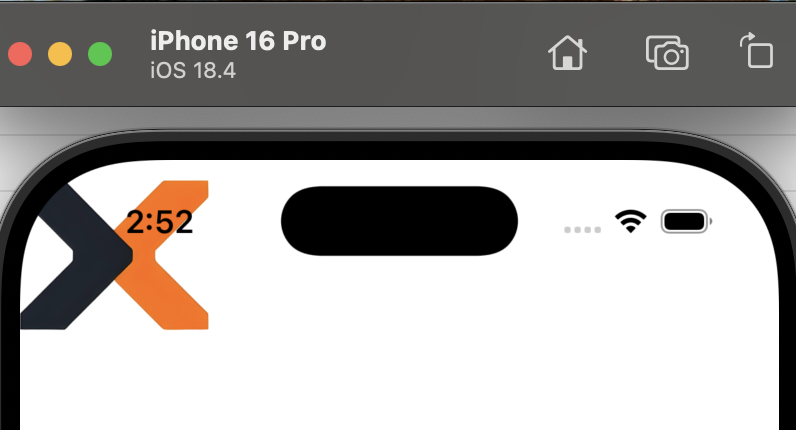

The image is displayed at the top left of the screen.
I'm guessing that the code I have written should center the image on the screen. However, while I would like to know how to center the image, I also want to be able to position it at a specific place on the screen, using points (or pixels).
Any suggestions?
These lines are your problem:
self.centerXAnchor.constraint(equalTo: self.centerXAnchor).isActive = true
self.topAnchor.constraint(equalTo: self.centerYAnchor).isActive = true
You‘re setting self.centerXAnchor to equal itself, which will do nothing, and self.topAnchor to equal self.centerYAnchor, which is impossible.
Instead, you want to set self.centerXAnchor to equal the superview’s centerXAnchor and the same for the Y anchor. (In your case the superview will be the view controller’s view.)
For a specific position rather than centred, you’ll want to use constraints lining the image view up with the leading/top/trailing/bottom edges of the superview with a constant depending on your needs.
