visionOS: Unable to programmatically close child WindowGroup when parent window closes

Hi , I'm struggling with visionOS window management and need help with closing child windows programmatically.

App Structure

My app has a Main-Sub window hierarchy:

• AWindow (Home/Main)
• BWindow (Main feature window)
• CWindow (Tool window - child of BWindow)

Navigation flow:

• AWindow → BWindow (switch, 1 window on screen)
• BWindow → CWindow (opens child, 2 windows on screen)

I want BWindow and CWindow to be separate movable windows (not sheet/popover) so users can position them independently in space.

The Problem

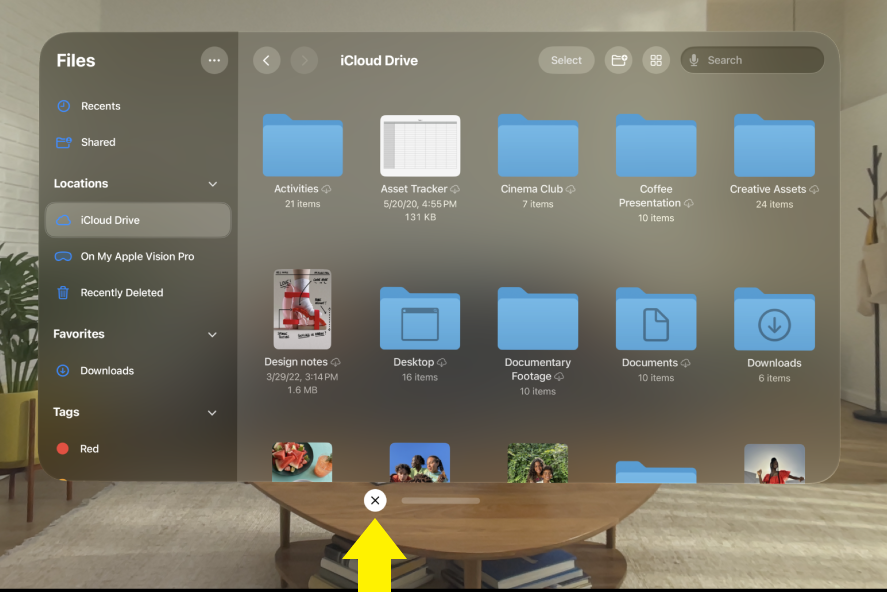

1. CWindow doesn't close when BWindow closes by tapping the X button below the app (next to the window bar)

• User clicks X on BWindow → BWindow closes but CWindow remains
• CWindow becomes orphaned on screen
• Can close CWindow programmatically when switching BWindow back to AWindow

1. App launch issue
   • After closing both windows, CWindow is remembered as last window
   • Reopening app shows only CWindow instead of BWindow
   • User gets stuck in CWindow with no way back to BWindow

I've Tried Environment dismissWindow in cleanup but its not working.

// In BWindow.swift
.onDisappear {
        if windowManager.isWindowOpen("cWindow") {
        dismissWindow(id: "cWindow")
    }
}

My App Structure Code Now

// in MyNameApp.swift
@main
struct MyNameApp: App {
    var body: some Scene {
        WindowGroup(id: "aWindow") {
            AWindow()
        }
        WindowGroup(id: "bWindow") {
            BWindow()
        }
        WindowGroup(id: "cWindow") {
            CWindow()
        }
    }
}

// WindowStateManager.swift
class WindowStateManager: ObservableObject {
    static let shared = WindowStateManager()
    @Published private var openWindows: Set<String> = []
    @Published private var windowDependencies: [String: String] = [:]
    private init() {}
    func markWindowAsOpen(_ id: String) {
        markWindowAsOpen(id, parent: nil)
    }
    func markWindowAsClosed(_ id: String) {
        openWindows.remove(id)
        windowDependencies[id] = nil
    }
    func isWindowOpen(_ id: String) -> Bool {
        let isOpen = openWindows.contains(id)
        return isOpen
    }
    func markWindowAsOpen(_ id: String, parent: String? = nil) {
        openWindows.insert(id)
        if let parentId = parent {
            windowDependencies[id] = parentId
        }
    }
    func getParentWindow(of childId: String) -> String? {
        let parent = windowDependencies[childId]
        return parent
    }
    func getChildWindows(of parentId: String) -> [String] {
        let children = windowDependencies.compactMap { key, value in
            value == parentId ? key : nil
        }
        return children
    }
    func setNextWindowParent(_ parentId: String) {
        UserDefaults.standard.set(parentId, forKey: "nextWindowParent")
    }
    func getAndClearNextWindowParent() -> String? {
        let parent = UserDefaults.standard.string(forKey: "nextWindowParent")
        UserDefaults.standard.removeObject(forKey: "nextWindowParent")
        return parent
    }
    func forceCloseChildWindows(of parentId: String) {
        let children = getChildWindows(of: parentId)
        for child in children {
            markWindowAsClosed(child)
            NotificationCenter.default.post(
                name: Notification.Name("ForceCloseWindow"),
                object: nil,
                userInfo: ["windowId": child]
            )
            forceCloseChildWindows(of: child)
        }
    }
    func hasMainWindowOpen() -> Bool {
        let mainWindows = ["main", "bWindow"]
        return mainWindows.contains { isWindowOpen($0) }
    }
    func cleanupOrphanWindows() {
        for (child, parent) in windowDependencies {
            if isWindowOpen(child) && !isWindowOpen(parent) {
                NotificationCenter.default.post(
                    name: Notification.Name("ForceCloseWindow"),
                    object: nil,
                    userInfo: ["windowId": child]
                )
                markWindowAsClosed(child)
            }
        }
    }
}

// BWindow.swift
struct BWindow: View {
    @Environment(\.dismissWindow) private var dismissWindow
    @ObservedObject private var windowManager = WindowStateManager.shared
    var body: some View {
        VStack {
            Button("Open C Window") {
                windowManager.setNextWindowParent("bWindow")
                openWindow(id: "cWindow")
            }
        }
        .onAppear {
            windowManager.markWindowAsOpen("bWindow")
        }
        .onDisappear {
            windowManager.markWindowAsClosed("bWindow")
            windowManager.forceCloseChildWindows(of: "bWindow")
        }
        .onChange(of: scenePhase) { oldValue, newValue in
            if newValue == .background || newValue == .inactive {
                 windowManager.forceCloseChildWindows(of: "bWindow")
            }
        }
    }
}

// CWindow.swift
import SwiftUI
struct cWindow: View {
    @ObservedObject private var windowManager = WindowStateManager.shared
    @State private var shouldClose = false
    var body: some View {
     // Content
        }
        .onDisappear {
            windowManager.markWindowAsClosed("cWindow")
            NotificationCenter.default.removeObserver(
                self,
                name: Notification.Name("ForceCloseWindow"),
                object: nil
            )
        }
        .onChange(of: scenePhase) { oldValue, newValue in
            if newValue == .background {
            }
        }
        .onAppear {
            let parent = windowManager.getAndClearNextWindowParent()
            windowManager.markWindowAsOpen("cWindow", parent: parent)
            NotificationCenter.default.addObserver(
                forName: Notification.Name("ForceCloseWindow"),
                object: nil, queue: .main) { notification in
                if let windowId = notification.userInfo?["windowId"] as? String, windowId == "cWindow" {
                    shouldClose = true
                }
            }
        }
        .onChange(of: shouldClose) { _, newValue in
            if newValue {
                dismissWindow()
            }
        }
}

The logs show everything executes correctly, but CWindow remains visible on screen.

Questions

1. Why doesn't dismissWindow(id:) work in cleanup scenarios?
2. Is there a proper way to create a window relationships like parent-child relationships in visionOS?
3. How can I ensure main windows open on app launch instead of tool windows?
4. What's the recommended pattern for dependent windows in visionOS?

Environment: Xcode 16.2, visionOS 2.0, SwiftUI
